BIM model integrity is about more than keeping geometry visually correct. A model must also preserve object identities, relationships, properties, levels, and derived information as designers edit, undo, redo, and retry operations. Snaptrude argues that testing these behaviors as sequences is essential for identifying problems that may remain invisible until later in a project.
A model can appear correct while containing hidden inconsistencies. A wall, for example, might remain visible but lose its relationship with an opening. Similarly, undoing an operation might restore geometry without restoring an underlying object reference. Such problems can surface during subsequent edits, making their original cause difficult to identify.

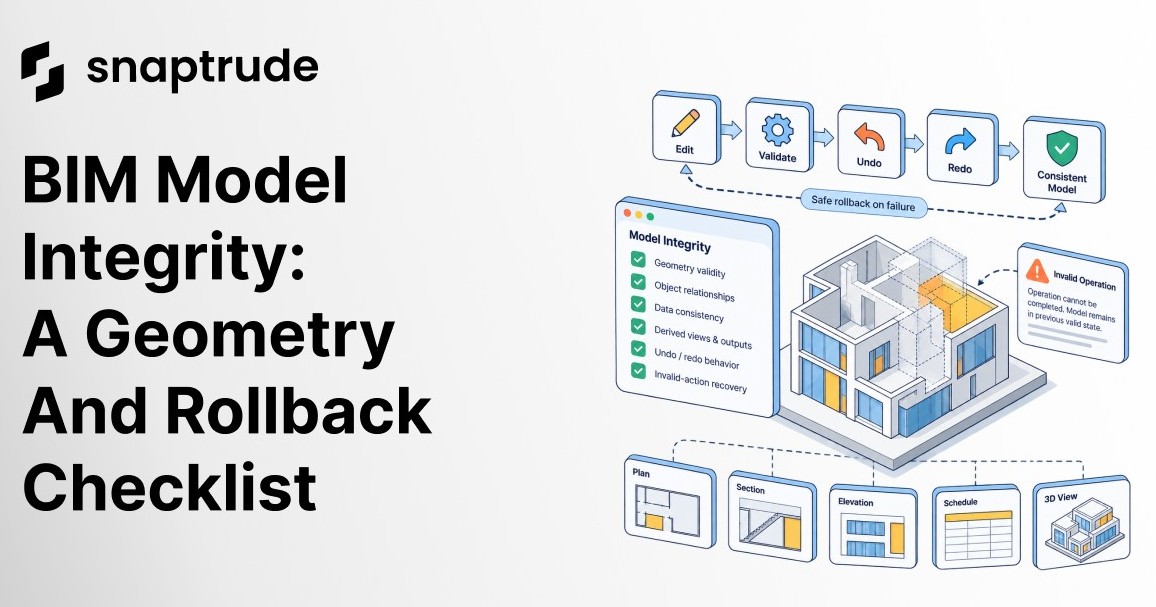

Snaptrude proposes six areas for BIM integrity testing: geometry validity, object relationships, data consistency, derived views and outputs, undo and redo behavior, and recovery from invalid actions. Geometry checks should look for gaps, overlaps, broken junctions, missing faces, and unexpected position changes. Data checks should confirm that materials, classifications, levels, areas, and other properties remain intact after edits. Plans, sections, 3D views, and schedules can expose inconsistencies that are not obvious in the active modeling view.
Sequence testing is particularly important because BIM software maintains state across connected operations. Teams should perform an edit, inspect the result, undo it, redo it, and repeat the action while checking the expected state at each stage. Structured checks involving object counts, relationships, positions, properties, and visibility provide stronger evidence than screenshots alone.
The article also distinguishes rollback from undo. Undo reverses a completed action, while rollback should prevent an unsuccessful operation from leaving partial changes behind. Ultimately, BIM integrity testing should establish whether failures are detectable, reproducible, and recoverable before software is trusted in production workflows.
