CLACTON-ON-SEA, UK, Oct 1, 2026 – Pickering Interfaces has introduced the 65-217, an Ethernet-controlled LXI switching matrix that engineers can expand without removing the chassis from the test rack. The 65-217 switching matrix also supports RF crosstalk measurements on unterminated signal paths for aerospace and automotive applications.
“The 65-217 gives users a practical way to start with the matrix size they need today and expand it later,” said Steve Edwards, head of product management at Pickering. “Up to six plug-in modules can be installed in a 65-200 chassis, creating a single matrix rather than separate 64×8 elements. The control software handles the path identification offsets between modules, reducing programming complexity.”

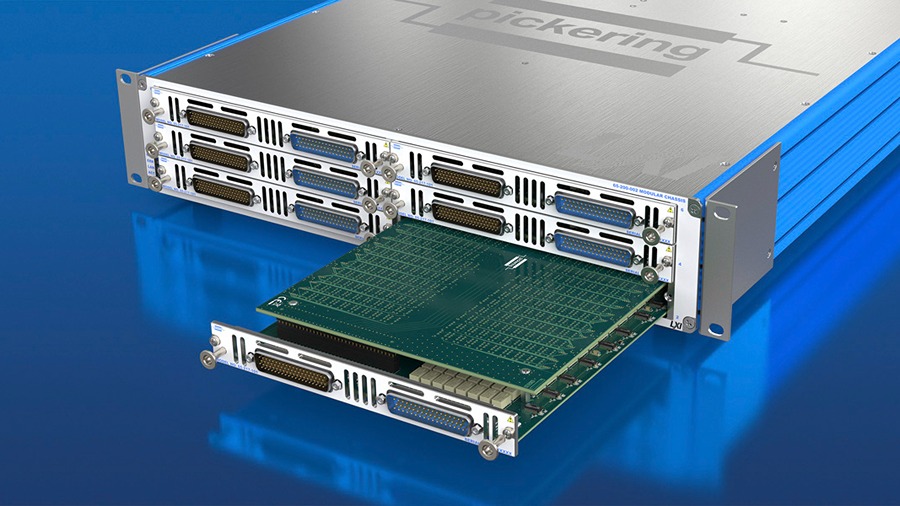

Designed for Pickering’s 65-200 LXI chassis, each plug-in provides a 64×8, single-pole matrix. Configurations reach 384×8 within a 19-inch, 2U chassis. Front access also allows engineers to replace modules for servicing. Versions are available with or without front-panel Y-axis access, while switched Y-axis loop-through connections support expansion across multiple chassis.
A dual Y-axis analog bus lets multiple external instruments access different portions of the matrix. Users can also divide the system into two independent matrices. Switched Y-axis points disconnect unused sections to help maximize bandwidth.
Relay cycle counting helps users schedule preventive maintenance and balance usage across signal paths. Integrated Built-In Relay Self-Test (BIRST) and external eBIRST tools can identify failed or worn relays. Each plug-in carries spare relays for servicing.
The 65-217 switches up to 300 VDC or 250 VAC and 2 A, with maximum power ratings of 60 W or 62.5 VA. Pickering provides a three-year warranty and guarantees product support.
Source: Pickering Interfaces
