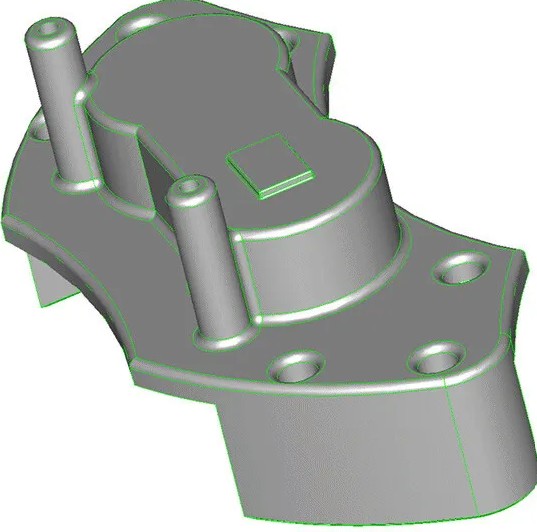

CAD translation may seem like a straightforward matter of reading one file format and writing another, but reliable interoperability is far more complicated. Engineering teams routinely exchange models among CATIA, SolidWorks, NX, Creo, Inventor, Solid Edge, and neutral formats such as STEP and IGES. Each system represents geometry, topology, metadata, product and manufacturing information, and assemblies differently, tells WorldCAD Access Blog.
These differences can create subtle errors. A translated model may lose a fillet, shift a surface, flatten an assembly hierarchy, or drop manufacturing information without immediately triggering an error. Such defects may emerge later during simulation, machining, meshing, or other downstream processes. Consistent translation therefore requires geometry fidelity, metadata preservation, reliable round trips, predictable behavior across formats, and acceptable performance with large assemblies.
Modeling kernels add another layer of complexity. Parasolid, ACIS, and CGM use different tolerances and rules for determining valid geometry. Translation software must reconcile these differences through healing operations that repair duplicate vertices, broken loops, self-intersecting curves, missing faces, and gaps between surfaces. More difficult problems, including tangential intersections, may require geometry reconstruction rather than simple tolerance-based stitching.
Even basic issues can cause serious failures. Incorrect unit interpretation can turn an inch-based model into geometry 25.4 times its intended size. Differences in coordinate systems and color handling can also generate problems.
The article recommends generating geometry directly in the target modeling kernel, keeping automatic healing enabled, and using selective loading for large assemblies. Developers should also validate translated models automatically by checking body validity, bounding boxes, assembly depth, and part counts. Batch conversion should account for libraries that require multiprocess rather than multithreaded execution.
As CAD increasingly intersects with BIM, cloud design, and visualization workflows, interoperability will become more demanding. Reliable translation is best treated as core engineering infrastructure, supported by systematic validation rather than as a simple import-export feature.
